उत्पाद विवरण
उत्पत्ति के प्लेस: चीन
प्रमाणन: ISO9001
मॉडल संख्या: तामचीनी तार
भुगतान और शिपिंग शर्तें
न्यूनतम आदेश मात्रा: 10 किलो
मूल्य: 25-35USD/KG
पैकेजिंग विवरण: मामला
प्रसव के समय: 10-30 दिनों तक
भुगतान शर्तें: वेस्टर्न यूनियन, टी/टी, डी/पी, डी/ए, एल/सी
आपूर्ति की क्षमता: 2000 किलो / महीना
नमूना: |
छोटे आदेश स्वीकार किए गए |
आकार: |
0.01-10 मिमी |
मानक: |
जीबी/एएसटीएम/जेआईएस/बीआईएस/डीआईएन |
नमूना: |
छोटे आदेश स्वीकार किए गए |
आकार: |
0.01-10 मिमी |
मानक: |
जीबी/एएसटीएम/जेआईएस/बीआईएस/डीआईएन |
Product Description

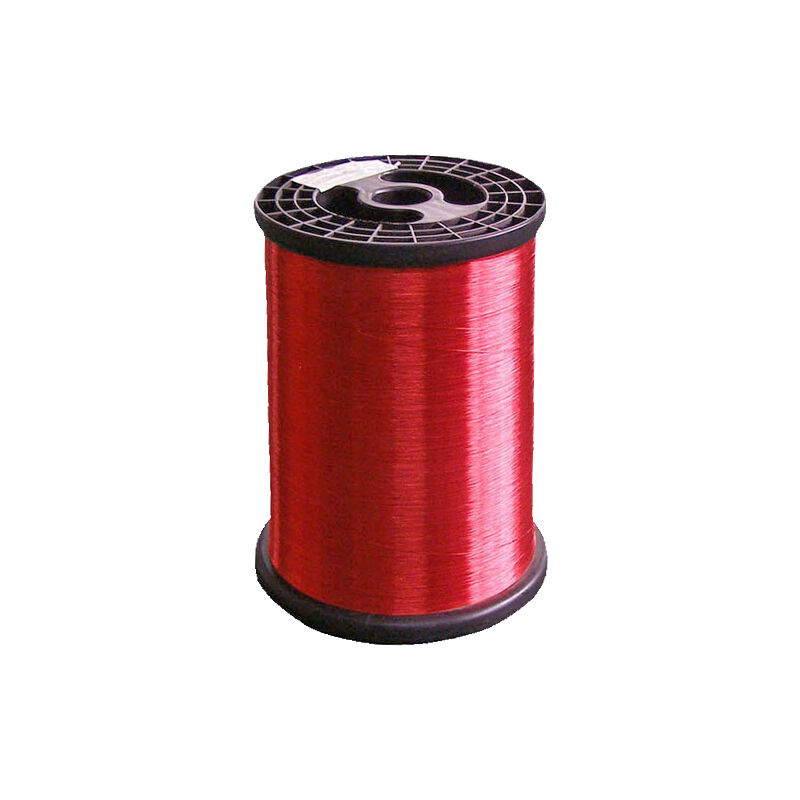

These enameled resistance wires have been broadly used for standard resistors, automobile
parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.
Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.
Type Of Nichrome Wire
NiCr80/20,NiCr70/30,NiCr60/15,NiCr90/10,NiCr35/20,NiCr30/20
Type of Insulation
|
Insulation-enamelled Name |
Thermal LevelºC (working time 2000h) |
Code Name |
GB Code |
ANSI. TYPE |
|
Polyurethane enamelled wire |
130 |
UEW |
QA |
MW75C |
|
Polyester enamelled wire |
155 |
PEW |
QZ |
MW5C |
|
Polyester-imide enamelled wire |
180 |
EIW |
QZY |
MW30C |
|
Polyester-imide and polyamide-imide double coated enameled wire |
200 |
EIWH (DFWF) |
QZY/XY |
MW35C |
|
Polyamide-imide enamelled wire |
220 |
AIW |
QXY |
MW81C |
Type Of Bare Alloy Wire
The alloy we can do enamelled are Copper-nickel alloy wire,Constantan wire,Manganin wire. Kama Wire,NiCr Alloy wire,FeCrAl Alloy wire etc alloy wire
|
main property type |
|
Cuni1 |
CuNI2 |
CuNI6 |
CuNi8 |
CuNI10 |
CuNi14 |
CuNi19 |
CuNi23 |
CuNi30 |
CuNi34 |
CuNI44 |
|
main chemical composition |
Ni |
1 |
2 |
6 |
8 |
10 |
14.2 |
19 |
23 |
30 |
34 |
44 |
|
|
MN |
/ |
/ |
/ |
/ |
/ |
0.3 |
0.5 |
0.5 |
1.0 |
1.0 |
1.0 |
|
|
CU |
rest |
rest |
rest |
rest |
rest |
rest |
rest |
rest |
rest |
rest |
rest |
|
max working temperature |
|
/ |
200 |
220 |
250 |
250 |
300 |
300 |
300 |
350 |
350 |
400 |
|
density g/cm3 |
|
8.9 |
8.9 |
8.9 |
8.9 |
8.9 |
8.9 |
8.9 |
8.9 |
8.9 |
8.9 |
8.9 |
|
resistivity at 20 °c |
|
0.03 ± 10% |
0.05± 10% |
0.10± 10% |
0.12± 10% |
0.15± 10% |
0.20± 5% |
0.25± 5% |
0.30± 5% |
0.35± 5% |
0.40± 5% |
0.49± 5% |
|
temperature coefficient of resistance |
|
<100 |
<120 |
<60 |
<57 |
<50 |
<38 |
<25 |
<16 |
<10 |
-0 |
<-6 |
|
tensile strength mpa |
|
>210 |
>220 |
>250 |
>270 |
>290 |
>310 |
>340 |
>350 |
>400 |
>400 |
>420 |
|
elongation |
|
>25 |
>25 |
>25 |
>25 |
>25 |
>25 |
>25 |
>25 |
>25 |
>25 |
>25 |
|
melting point °c |
|
1085 |
1090 |
1095 |
1097 |
1100 |
1115 |
1135 |
1150 |
1170 |
1180 |
1280 |
|
coefficient of conductivity |
|
145 |
130 |
92 |
75 |
59 |
48 |
38 |
33 |
27 |
25 |
23 |
Round wire:0.018mm~3.0mm
Color of enamel insulation:Red,Green,Yellow,Black,Blue,Nature etc.
Ribbon Size:0.01mm*0.2mm~1.2mm*24mm
Moq:5kg each size
