उत्पाद विवरण
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: Tankii
प्रमाणन: ISO9001
मॉडल संख्या: शुद्ध निकल पन्नी
भुगतान और शिपिंग शर्तें
न्यूनतम आदेश मात्रा: 30 किलो
मूल्य: 25-40USD/Kg
पैकेजिंग विवरण: मामला
प्रसव के समय: 15-30 दिन
भुगतान शर्तें: वेस्टर्न यूनियन, टी/टी
आपूर्ति की क्षमता: 500 टन/किग्रा
विद्युत प्रतिरोधकता (20 ° C): |
6.97 μΩ·सेमी |
ऊष्मीय चालकता: |
90.7 W/m·K |
घनत्व: |
8.89 - 8.9 ग्राम/सेमी³ |
गलनांक: |
1453°से |
तन्य शक्ति (एनील्ड): |
450 - 550 एमपीए |
विद्युत प्रतिरोधकता (20 ° C): |
6.97 μΩ·सेमी |
ऊष्मीय चालकता: |
90.7 W/m·K |
घनत्व: |
8.89 - 8.9 ग्राम/सेमी³ |
गलनांक: |
1453°से |
तन्य शक्ति (एनील्ड): |
450 - 550 एमपीए |

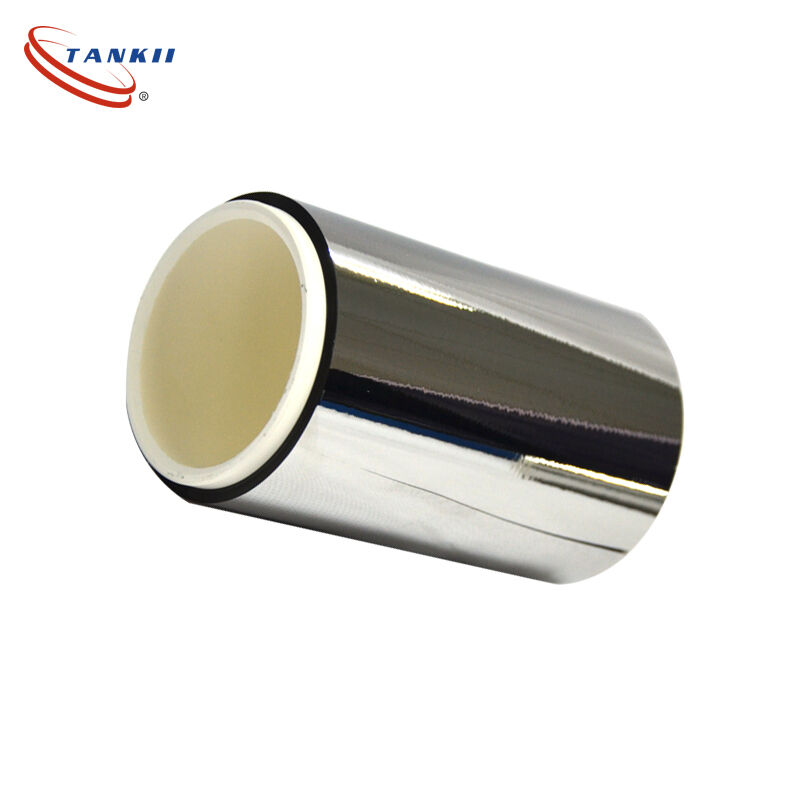

Pure Nickel Foil Purity >99.5% / Ultra-thin Battery Grade Nickel Strip
Pure Nickel Foil with purity >99.5% (typically 99.9% to 99.98%) is a critical material in the battery industry, primarily used as current collectors, battery tabs, connectors, and substrates for various battery chemistries. Grades include Nickel 200 (N02200), Nickel 201 (N02201), N4, N6, and ultra-high purity variants.
| Grade | Ni+Co (min) | Cu (max) | Fe (max) | Mn (max) | C (max) | Si (max) | S (max) | Purity Level |
|---|---|---|---|---|---|---|---|---|
| N4 | 99.9% | 0.015% | 0.04% | 0.002% | 0.01% | 0.03% | 0.001% | 99.9%
|
| N6 | 99.5% | 0.10% | 0.10% | 0.05% | 0.10% | 0.10% | 0.005% | 99.5%
|
| Nickel 200 (N02200) | 99.0% | 0.25% | 0.40% | 0.35% | 0.15% | 0.35% | 0.01% | 99.0%
|
| Nickel 201 (N02201) | 99.0% | 0.25% | 0.40% | 0.35% | 0.02% | 0.35% | 0.01% | 99.0%
|
| Ultra-High Purity | 99.98% | - | - | - | - | - | - | 99.98% |
| Electrical Resistivity (20°C) | 6.97 μΩ·cm
|
| Thermal Conductivity | 90.7 W/m·K |
| Density | 8.89 - 8.9 g/cm³ |
| Melting Point | 1453°C
|
| Boiling Point | 2732°C
|
| Curie Temperature | 360°C |
| Tensile Strength (Annealed) | 450 - 550 MPa
|
| Tensile Strength (Cold Rolled) | 550 - 800 MPa |
| Elongation | ≥15% |
| Hardness | 90-220 HV |
| Packaging | Plastic film + wooden case/pallet; coil packaging
|
| Paper Core ID | Ø200mm, Ø300mm, Ø400mm, Ø500mm, or custom
|
| MOQ | 1 kg (samples) to 500 kg (production)
|
| Delivery Time | 7-15 days (stock), 15-30 days (custom)
|
| Shipping Ports | Shanghai, Shenzhen, Ningbo, Mumbai |
