उत्पाद विवरण
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: Tankii
प्रमाणन: ISO9001
मॉडल संख्या: Ni80Cr20
दस्तावेज: Tankii Alloy Catalog.pdf
भुगतान और शिपिंग शर्तें
न्यूनतम आदेश मात्रा: 10 किग्रा
मूल्य: 20-30USD/KG
पैकेजिंग विवरण: मामला
प्रसव के समय: 15-20 दिन
भुगतान शर्तें: एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन
आपूर्ति की क्षमता: 5000kg/महीना
इन्सुलेशन का रंग: |
लाल, हरा, पीला, काला, नीला, प्रकृति आदि। |
परिवहन पैकेज: |
प्लाइवुड पैलेट या लकड़ी के केस में पैक किया जाए |
मूल: |
शंघाई |
उत्पादन क्षमता: |
1 टन/माह |
प्रतिरूप संख्या।: |
Ni80Cr20 |
इन्सुलेशन का रंग: |
लाल, हरा, पीला, काला, नीला, प्रकृति आदि। |
परिवहन पैकेज: |
प्लाइवुड पैलेट या लकड़ी के केस में पैक किया जाए |
मूल: |
शंघाई |
उत्पादन क्षमता: |
1 टन/माह |
प्रतिरूप संख्या।: |
Ni80Cr20 |

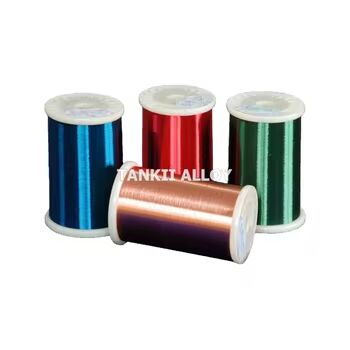

0.05mm Enamelled Nichrome Ni80Cr20 Wire
Common Name:(enameled Resistor wire,enameled heating wire,enameled wound wire)
Product Description
These enameled resistance wires have been broadly used for standard resistors, automobile parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.
Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.
Type of bare alloy wire
| Copper-nickel alloy wire, | Constantan Wire,CuNi1~CuNi44 | |
| Ni-Cr Alloy wire | NiCr35/20,NiCr70/30,NiCr60/15,NiCr80/20,NiCr90/10,NiCr AA,Karma. | |
| Fe-Cr-Al Alloy wire | Cr13Al4,Cr21Al4,Cr21Al6,Cr23Al5,Cr25Al5, Cr21Al6Nb,Cr27Al7Mo2, |
|
| Cu-Ni-Mn Alloy wire | CuMn12Ni2,CuMn12Ni4,Manganin | |
| Any copper alloy and nickel alloy is available | ||
Color of enameled insulation:
| Red,Green,Yellow,Black,Blue,Nature etc. |
Type of insulation
| Insulation-enamelled Name | Thermal LevelºC (working time 2000h) |
Code Name | GB Code | ANSI. TYPE |
| Polyurethane enamelled wire | 130 | UEW | QA | MW75C |
| Polyester enamelled wire | 155 | PEW | QZ | MW5C |
| Polyester-imide enamelled wire | 180 | EIW | QZY | MW30C |
| Polyester-imide and polyamide-imide double coated enameled wire | 200 | EIWH (DFWF) |
QZY/XY | MW35C |
| Polyamide-imide enamelled wire | 220 | AIW | QXY | MW81C |
Style of supply
| Alloys Name | Type | Dimension | ||
| Enameled-W | Wire | D=0.018mm~3mm | ||
| Enameled-R | Ribbon | W=0.4~24 | T=0.01~0.2mm | |
Dimension of insulation
| D mm |
Min thickness of insulation | Max OD of Enameled | ||
| I | II | I | II | |
| 0.02 | 0.005 | 0.009 | 0.09 | 0.036 |
| 0.022 | 0.005 | 0.019 | 0.032 | 0.038 |
| 0.025 | 0.006 | 0.010 | 0.036 | 0.042 |
| 0.028 | 0.006 | 0.010 | 0.039 | 0.045 |
| 0.030 | 0.006 | 0.011 | 0.042 | 0.048 |
| 0.032 | 0.006 | 0.011 | 0.044 | 0.050 |
| 0.036 | 0.007 | 0.012 | 0.049 | 0.055 |
| 0.040 | 0.007 | 0.012 | 0.053 | 0.060 |
| 0.045 | 0.008 | 0.013 | 0.059 | 0.066 |
| 0.050 | 0.008 | 0.014 | 0.064 | 0.072 |
| 0.056 | 0.009 | 0.015 | 0.071 | 0.079 |
| 0.060 | 0.009 | 0.016 | 0.076 | 0.084 |
| 0.063 | 0.009 | 0.016 | 0.080 | 0.088 |
| 0.071 | 0.010 | 0.017 | 0.089 | 0.097 |
| 0.080 | 0.011 | 0.018 | 0.099 | 0.108 |
| 0.090 | 0.012 | 0.019 | 0.111 | 0.120 |
| 0.100 | 0.012 | 0.021 | 0.122 | 0.132 |
| 0.112 | 0.012 | 0.021 | 0.135 | 0.146 |
| 0.125 | 0.014 | 0.023 | 0.150 | 0.161 |
| 0.140 | 0.015 | 0.024 | 0.166 | 0.179 |
| 0.150 | 0.016 | 0.025 | 0.177 | 0.191 |
| 0.160 | 0.017 | 0.028 | 0.188 | 0.202 |
| 0.180 | 0.018 | 0.028 | 0.210 | 0.225 |
| 0.200 | 0.019 | 0.030 | 0.231 | 0.248 |
| 0.224 | 0.021 | 0.032 | 0.258 | 0.275 |
| 0.250 | 0.022 | 0.034 | 0.285 | 0.304 |
| 0.280 | 0.024 | 0.036 | 0.318 | 0.338 |
| 0.300 | 0.025 | 0.037 | 0.339 | 0.360 |
| 0.315 | 0.026 | 0.038 | 0.356 | 0.376 |
| 0.355 | 0.027 | 0.041 | 0.398 | 0.420 |
| 0.400 | 0.028 | 0.043 | 0.445 | 0.468 |
| 0.450 | 0.030 | 0.048 | 0.498 | 0.524 |
| 0.500 | 0.031 | 0.049 | 0.551 | 0.578 |
| 0.560 | 0.034 | 0.052 | 0.615 | 0.643 |
| 0.600 | 0.035 | 0.054 | 0.657 | 0.686 |
| 0.630 | 0.038 | 0.056 | 0.689 | 0.718 |
| 0.710 | 0.038 | 0.059 | 0.773 | 0.805 |
| 0.00 | 0.041 | 0.062 | 0.869 | 0.902 |
| 0.900 | 0.043 | 0.066 | 0.973 | 1.010 |
| 1.000 | 0.048 | 0.070 | 1.079 | 1.117 |
| 1.120 | 0.049 | 0.074 | 1.205 | 1.247 |
| 1.250 | 0.053 | 0.080 | 1.343 | 1.387 |
| 1.400 | 0.058 | 0.085 | 1.499 | 1.548 |
| 1.500 | 0.059 | 0.090 | 1.605 | 1.654 |
