उत्पाद विवरण
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: Tankii
प्रमाणन: ISO9001
मॉडल संख्या: Ni80Cr20
दस्तावेज: Tankii Alloy Catalog.pdf
भुगतान और शिपिंग शर्तें
न्यूनतम आदेश मात्रा: 10 किग्रा
मूल्य: 20-30USD/KG
पैकेजिंग विवरण: मामला
प्रसव के समय: 10-15 दिनों के
भुगतान शर्तें: एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन
आपूर्ति की क्षमता: 100 टन / वर्ष
आवेदन: |
गरम करना |
स्टॉक आकार: |
0.018मिमी~0.071मिमी |
उत्पादन क्षमता: |
100 टन / वर्ष |
एचएस कोड: |
7505220000 |
परिवहन पैकेज: |
स्पूल, कार्टन, लकड़ी के केस |
आवेदन: |
गरम करना |
स्टॉक आकार: |
0.018मिमी~0.071मिमी |
उत्पादन क्षमता: |
100 टन / वर्ष |
एचएस कोड: |
7505220000 |
परिवहन पैकेज: |
स्पूल, कार्टन, लकड़ी के केस |

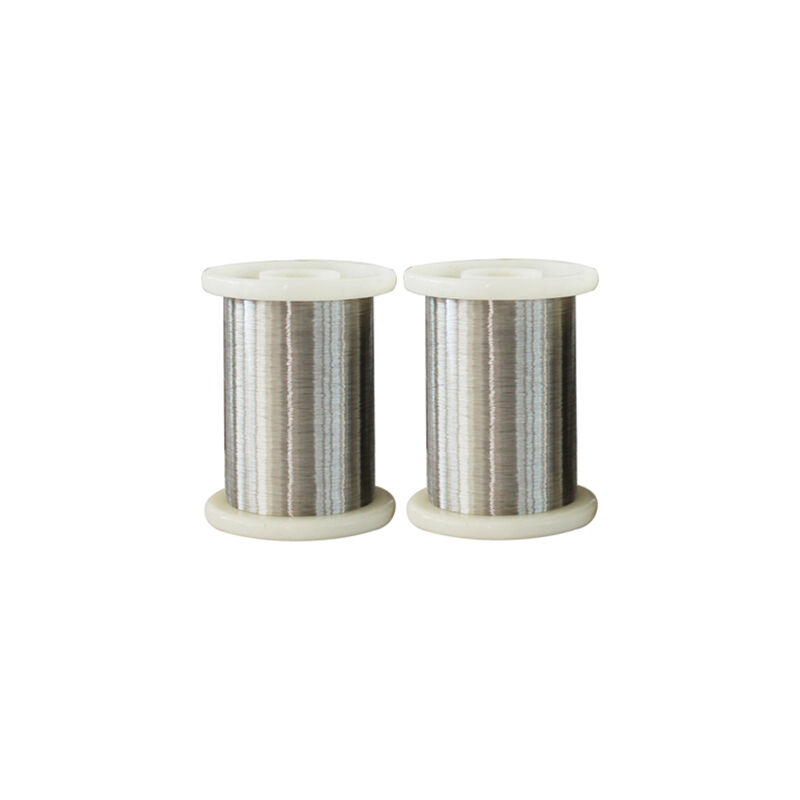

Ni80Cr20 Round Wire: Diameter 0.018mm~10mm
Ni80Cr20 Ribbon: Width 5~0.5mm, thickness 0.01-2mm
Grade: Ni80Cr20, Ni70Cr30, Ni60Cr16, Ni60Cr23, Ni35Cr20Fe
Nichrome's metallurgical structure confers them a very good plasticity when cold.
In addition of a relatively high specific resistance, Ni-Cr alloys join all the necessary properties for good performances in use of furnaces: Resistance to oxidation (they are not sensitive to aggressions of humid air).
Low embrittlement at high temperature. Good plasticity-Easier to give them a shape compared with FeCrAl (lower mechanical characteristics allow indeed a good control of elasticity of the product during shaping (coiling, folding, drawing).
Good resistance to creeping (more important than ferritic alloys) which is important during conception of a resistance presenting big heights of waves.
| Chemical Composition and Main Properties of Nichrome | ||||||
| Properties Grade | Ni80Cr20 | Ni70Cr30 | Ni60Cr15 | Ni35Cr20 | Ni30Cr20 | |
| Main Chemical Composition | Ni | Balance | Balance | 55.0-61.0 | 34.0-37.0 | 30.0-34.0 |
| Cr | 20.0-23.0 | 28.0-31.0 | 15.0-18.0 | 18.0-21.0 | 18.0-21.0 | |
| Fe | ≤ 1.0 | ≤ 1.0 | Balance | Balance | Balance | |
| Max Continuous Service Temperature(oC) | 1200 | 1250 | 1150 | 1100 | 1100 | |
| Resisivity 20oC (Ω mm2/m) | 1.09 | 1.18 | 1.12 | 1.04 | 1.04 | |
| Density (g/cm3) | 8.4 | 8.1 | 8.2 | 7.9 | 7.9 | |
| Thermal Conductivity(KJ/m@ h@ oC) | 60.3 | 45.2 | 45.2 | 43.8 | 43.8 | |
| Coefficient of Thermal Expansion(α × 10-6/oC) | 18 | 17 | 17 | 19 | 19 | |
| Melting Point( oC) | 1400 | 1380 | 1390 | 1390 | 1390 | |
| Elongation(%) | > 20 | > 20 | > 20 | > 20 | > 20 | |
| Micrographic Structure | austenite | austenite | austenite | austenite | austenite | |
| Magnetic Property | nonmagnetic | nonmagnetic | nonmagnetic | Weak magnetic | Weak magnetic | |
