उत्पाद विवरण
उत्पत्ति के प्लेस: चीन (महाद्वीप
ब्रांड नाम: Tankii
प्रमाणन: ISO9001
मॉडल संख्या: निक्रोम
भुगतान और शिपिंग शर्तें
न्यूनतम आदेश मात्रा: बातचीत योग्य
मूल्य: विनिमय योग्य
पैकेजिंग विवरण: मानक एक्सोपार्ट पैकेज
प्रसव के समय: भुगतान प्राप्त होने के लगभग 20 दिन बाद
भुगतान शर्तें: टी/टी, पेपैल, वेस्टर्न यूनियन, मनीग्राम,
आपूर्ति की क्षमता: प्रति वर्ष 1000 टन
वस्तु: |
NiChrome N8 फ़ॉइल सुपर थिन 0.005 मिमी |
सामग्री: |
निक्र मिश्र धातु |
सतह: |
चमकदार |
मोटाई: |
0.005 मिमी या अधिक |
अग्रणी समय: |
आदेश मात्रा के अनुसार 20 दिन |
आवेदन: |
तनाव प्रतिरोध सामग्री |
पाउडर या नहीं: |
पाउडर नहीं |
मूक: |
20 किलो |
वस्तु: |
NiChrome N8 फ़ॉइल सुपर थिन 0.005 मिमी |
सामग्री: |
निक्र मिश्र धातु |
सतह: |
चमकदार |
मोटाई: |
0.005 मिमी या अधिक |
अग्रणी समय: |
आदेश मात्रा के अनुसार 20 दिन |
आवेदन: |
तनाव प्रतिरोध सामग्री |
पाउडर या नहीं: |
पाउडर नहीं |
मूक: |
20 किलो |

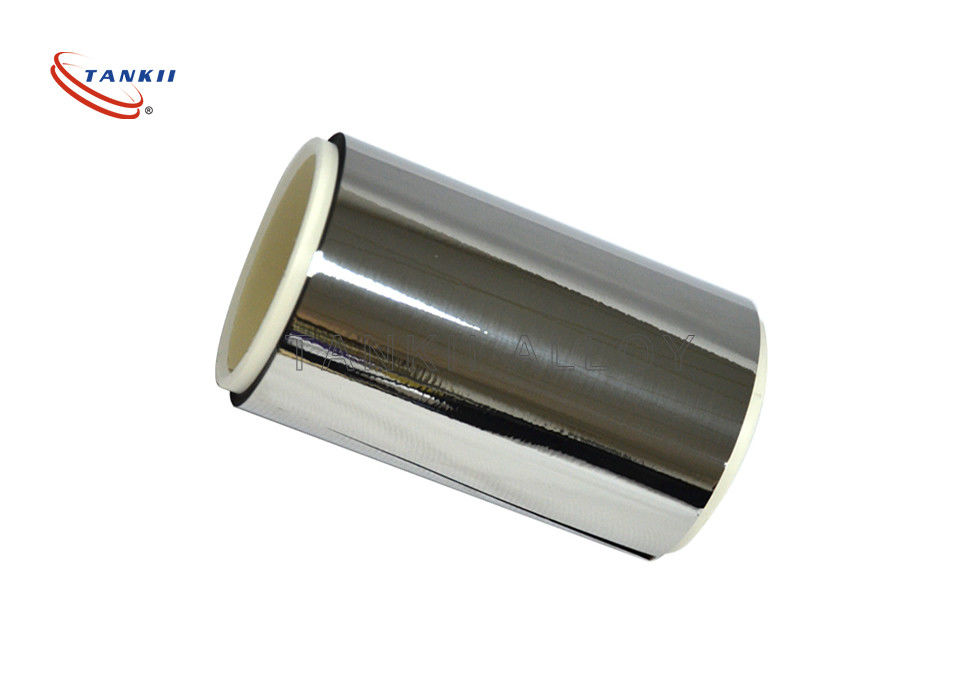

NiChrome N8 Foil Super Thin 0.005mm Used For Resistance Strain Gauge / Sensing Element
The main component of nichrome alloy is nickel, with a content usually exceeding 50%. In addition, it also contains elements such as iron, chromium, molybdenum, and copper. These elements are alloyed in a certain proportion to achieve the multifunctionality of the material:
Nickel: Provides a substrate to ensure basic performance of corrosion resistance and high temperature resistance.
Chromium: enhances the oxidation resistance and corrosion resistance of alloys.
Molybdenum: enhances the overall hardness and stress corrosion cracking resistance of alloys.
Copper: improves conductivity and antibacterial properties, enhances mechanical strength.
Nickel-chromium alloy with high and stable resistance, corrosion resistance, surface oxidation resistance, excellent coil- forming ability.it is an ideal material,it has good ductility,workability and weldability under high temperature and seismic strength.
Common Names :Karma, Evanohm, Ni80Cr20,Nikrothal 8,MWS-650,NiCrA,Tophet A,HAI-NiCr 80,Chromel A,Alloy A,Alloy 650,N8,Resistohm 80, Stablohm 650,Nichorme V,Nikrothal 80.
NiCr series: Karma, Evanohm, Cr20Ni80, Cr30Ni70, Cr15Ni60, Cr20Ni35, Cr20Ni30.
1. Size dimension range:
Foil: Tailor-made
Wire: 0.01-10mm
Ribbons: 0.05*0.2-2.0*6.0mm
Strip: 0.05*5.0-5.0*250mm
Bar:10-50mm
Key Features of nichrome products:
Propertes/Grade |
Karma |
NiCr 80/20 |
NiCr 70/30 |
NiCr 60/15 |
NiCr 35/20 |
NiCr 30/20 |
|
Main Chemical Composition(%) |
Ni |
Bal. |
Bal. |
Bal. |
55.0-61.0 |
34.0-37.0 |
30.0-34.0 |
Cr |
19~21.5 | 20.0-23.0 |
28.0-31.0 |
15.0-18.0 |
18.0-21.0 |
18.0-21.0 |
|
Fe |
2~3 | ≤ 1.0 |
≤ 1.0 |
Bal. |
Bal. |
Bal. |
|
| Al | 2.7~3.2 | ||||||
| Mn | 0.5~1.5 | ||||||
Max Working Temperature(ºC) |
300 | 1200 |
1250 |
1150 |
1100 |
1100 |
|
Resistivity at 20ºC (μ Ω · m) |
1.33 | 1.09 |
1.18 |
1.12 |
1.04 |
1.04 |
|
Density(g/cm3) |
8.1 | 8.4 |
8.1 |
8.2 |
7.9 |
7.9 |
|
Thermal Conductivity (KJ/m· h· ºC) |
46 | 60.3 |
45.2 |
45.2 |
43.8 |
43.8 |
|
Coefficient of Thermal Expansion(α × 10-6/ºC) |
- | 18 |
17 |
17 |
19 |
19 |
|
Melting Point(ºC) |
1400 | 1400 |
1380 |
1390 |
1390 |
1390 |
|
Elongation(%) |
10~20 | > 20 |
> 20 |
> 20 |
> 20 |
> 20 |
|
Micrographic Structure |
austenite | austenite |
austenite |
austenite |
austenite |
austenite |
|
Magnetic Property |
Non | nonmagnetic |
nonmagnetic |
nonmagnetic |
nonmagnetic |
nonmagnetic |
|
2. Products and services
1> ROHS cerfication;
2.> Small orders are accepted;
3.> Factory direct sale;
4.> Timely delivery;
5> Samples are available;
3 Features
1>. Good oxidation resistance;
2> . Low embrittlement at high temperature;
3.> Good plasticity(easier to give them a shape);
4> . Nice performance and processing;
4 Applications
It is mainly used to manufacture precision resistor components for various measuring instruments and meters, such as high-precision resistors, strain gauges and micro resistor components. Due to its excellent physical properties, this material has wide applicability in the field of industrial instrument manufacturing.
