उत्पाद विवरण
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: Tankii
प्रमाणन: ISO 9001
मॉडल संख्या: FECRAL 134
भुगतान और शिपिंग शर्तें
न्यूनतम आदेश मात्रा: 5 किलो
मूल्य: Negotatioin
पैकेजिंग विवरण: स्पूल, कुंडल, लकड़ी का केस
प्रसव के समय: 5-25 दिन
भुगतान शर्तें: टी/टी, वेस्टर्न यूनियन
आपूर्ति की क्षमता: 20000 किग्रा/सप्ताह
नाम: |
FECRAL 134 |
सामग्री: |
चतुर्थ मिश्र धातु |
आकार: |
अनुकूलित |
आवेदन: |
एचिंग |
मूक: |
20 किलो |
आकार: |
पट्टी |
सतह: |
चमकदार |
नाम: |
FECRAL 134 |
सामग्री: |
चतुर्थ मिश्र धातु |
आकार: |
अनुकूलित |
आवेदन: |
एचिंग |
मूक: |
20 किलो |
आकार: |
पट्टी |
सतह: |
चमकदार |

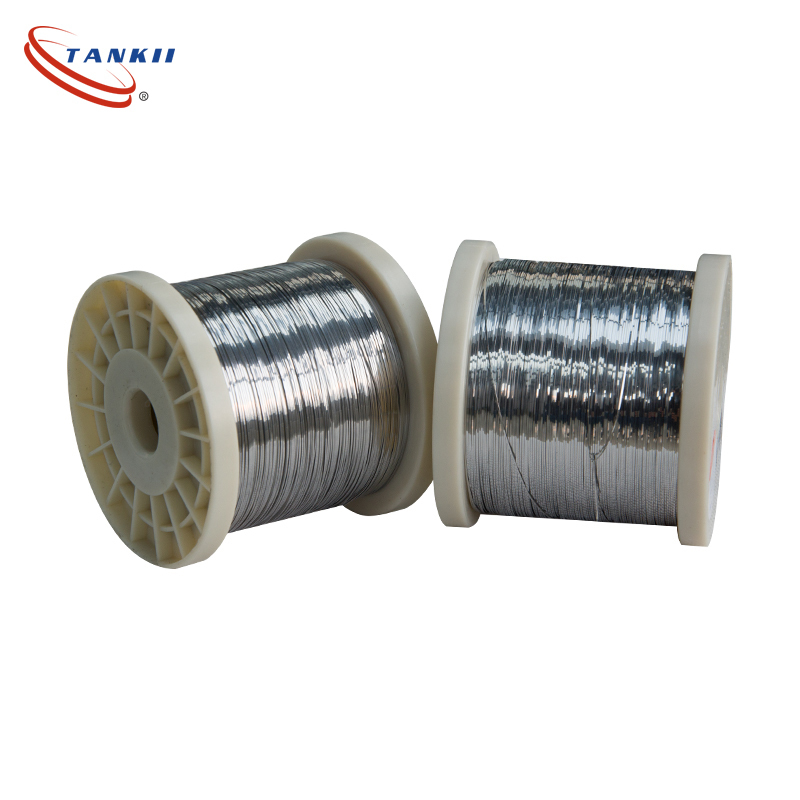

Fecral 13/4 Alloy 0cr13al4 Heating Resistance Ribbon / Flat Alloy Wire
FeCrAl alloy is made by a high-temperature, ferritic iron-chromium-aluminium alloy which can be used at temperatures up to 1350degrees. Typical applications for 0Cr21Al6Nb are as electrical heating elements in high-temperature furnaces in the heat treating, ceramics, glass, steel, and electronics industries.
Feature:
With long service life.Heating up fast.High thermal efficiency.Temperature uniformity. Can use vertically. When being used in the rated voltage,there is no volatile matter.It is an environmental protection electric heating wire. And an alternative to the costly nichrome wire.Can be customized according to customer requirements
FeCrAl alloys are characterized by excellent oxidation resistance and very good form stability resulting in long element life.
They are typically used in electrical heating elements in industrial furnaces and home appliances.
Fe-Cr-Al alloy with high resistivity and serviceability temperature than that for NiCr alloy and also has lower pr
| Grade | 1Cr13Al4 | TK1 | 0Cr25Al5 | 0Cr20Al6Re | 0Cr23Al5 | 0Cr19Al3 | 0Cr21Al6Nb | 0Cr27Al7Mo2 | |
|
Nominal composition % |
Cr | 12.0-15.0 | 22.0-26.0 | 23.0-26.0 | 19.0-22.0 | 22.5-24.5 | 18.0-21.0 | 21.0-23.0 | 26.5-27.8 |
| Al | 4.0-6.0 | 5.0-7.0 | 4.5-6.5 | 5.0-7.0 | 4.2-5.0 | 3.0-4.2 | 5.0-7.0 | 6.0-7.0 | |
| Re | opportune | 0.04-1.0 | opportune | opportune | opportune | opportune | opportune | opportune | |
| Fe | Bal. | Bal. | Bal. | Bal. | Bal. | Bal. | Bal. | ||
| Nb0.5 | Mo1.8-2.2 | ||||||||
| Resistivity 20ºC | 1.25 | 1.48 | 1.42 | 1.40 | 1.35 | 1.23 | 1.45 | 1.53 | |
| Density(g/cm³) | 7.4 | 7.1 | 7.1 | 7.16 | 7.25 | 7.35 | 7.1 | 7.1 | |
| Max continuous operating temperature(ºC) | 650 | 1400 | 1250 | 1250 | 1250 | 1100 | 1350 | 1400 | |
Grade: CrAl 20/5, Cr25Al5, Cr21Al6Nb, TK1
Max working temperature: 1250~1400°c
Resistivity: 1.35~1.5 mm2 Ω/m
Diameter 6mm~14mm usually
